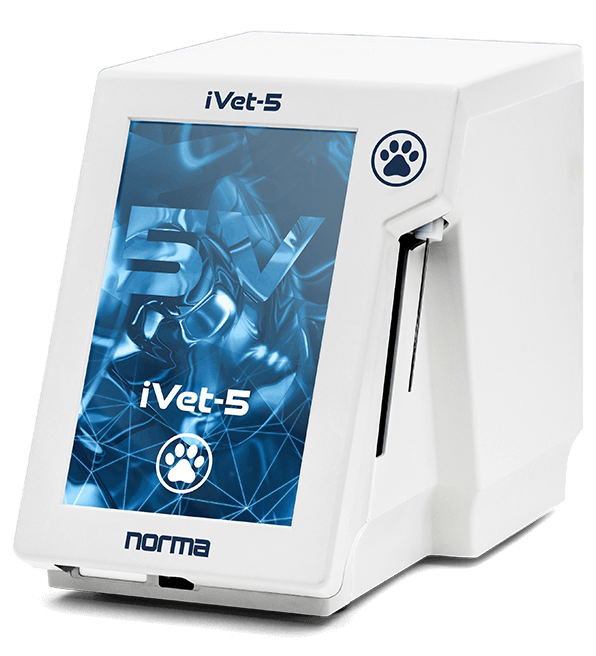

iVet-5: a must for veterinary use

The Norma iVet-5 is a laser-based, 5-part differential hematology analyzer with open vial sampling mode for veterinary use.

Overview Gallery Highlights and Best Features Technical Specifications Brochures

Overview

The iVet-5 is Norma’s hematology analyzer for veterinary use. This smart, laser-based 5-part differential hematology analyzer with open vial sampling mode provides precise complete blood count results for 17 animal species: dog, cat, horse, foal, camel, guinea pig, cattle, swine, goat, sheep, donkey, New World camelids, rabbit, rat, mouse, ferret, and thoroughbred horse.

These animal profiles are continuously expanding, and Norma will provide more measurement options in the future.

The iVet-5 inherited the Icon hematology family’s all excellent features:

compact size – A4 sheet paper footprint
easy-to-use – touch screen with simple navigation
extremely low sample volume processing
small reagent consumption – 75% less than any other analyzer’s consumption on the market
low user maintenance requirements – no weekly maintenance actions

These features allow this unique veterinary analyzer to be used at the measurement site and open new diagnostic options for veterinary clinics.

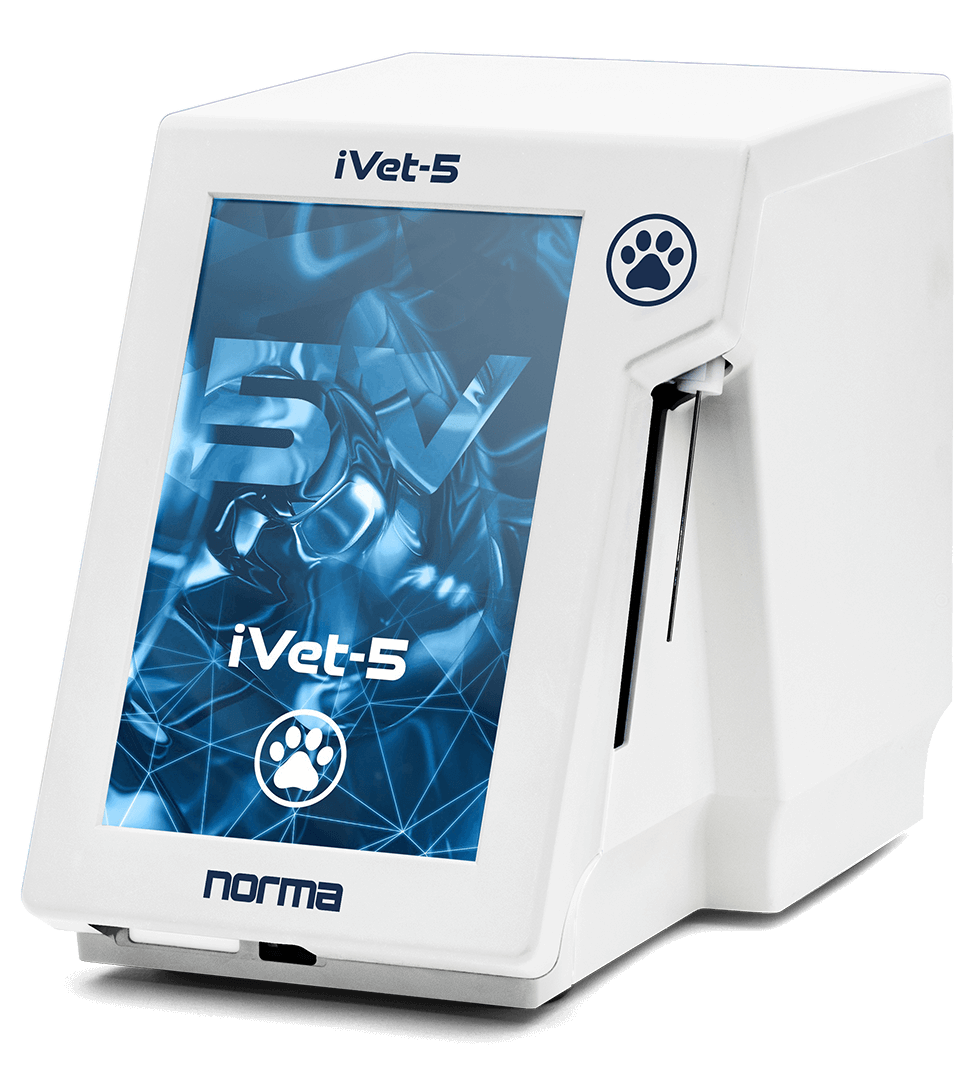

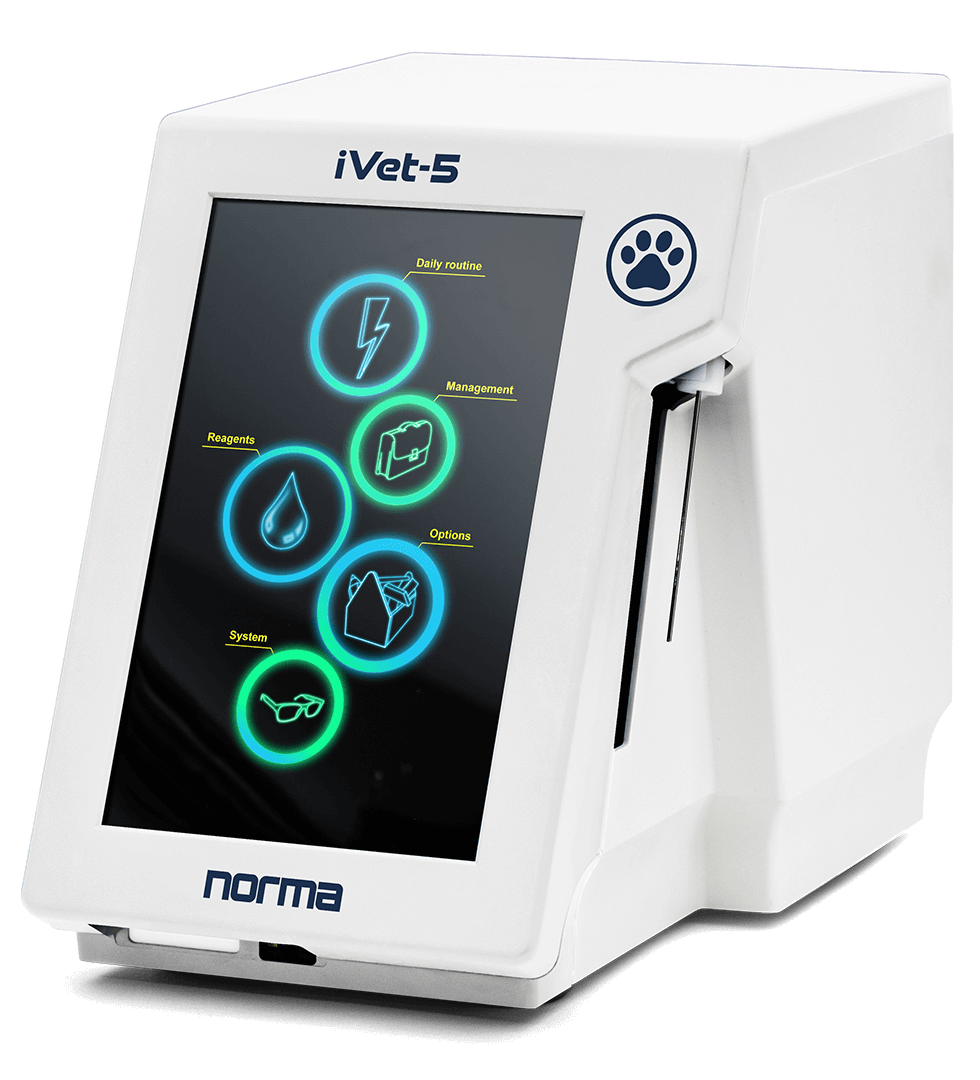

Gallery

Highlights and Best Features

5-part differential hematology analyzer that provides a 26-parameter complete blood count report
Open vial sampling
Animal species: dog, cat, horse, foal, camel guinea pig, cattle, swine, sheep, goat, donkey, New World camelids, rabbit, rat, mouse, ferret, thoroughbred horse
Laser-based forward-scattered light method for the differentiation of white blood cells (WBC), volumetric impedance method for detection of red blood cells (RBC), and photometrical method for the measurement of hemoglobin (HGB) levels
Compact size – the smallest hematology analyzer ever manufactured for veterinary use
Extremely low reagent consumption – 75% less compared to other analyzers on the market
Reagent packs are available for 100 tests (in case of 3 measures/day)
Low sample volume processing
10.1” LCD touchscreen – easy-to-use, straightforward navigation
Minimal user maintenance actions needed
LIS connectivity

Technical Specifications

Parameters	WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HGB, HCT, MCV, RDWsd/cv, MCH, MCHC, PLT, MPV, PCT, PDWsd/cv, PLC-R%, PLC-C
Measurement Technology	Laser-based forward-scattered light detection for WBC Volumetric impedance method for RBC Photometrical method for HGB
Animal species	dog, cat, horse, foal, camel, guinea pig, cattle, swine, sheep, goat, donkey, New World camelids, rabbit, rat, mouse, ferret, thoroughbred horse
Scattergram	WBC 5-part
Histograms	RBC, PLT
Sampling mode	Open vial sampling
Sample volume Aspirated	38μL whole blood
Throughput	45 tests per hour
Precision (CV, max)	WBC: 3%, RBC: 2%, MCV: 1%, HGB: 2%, PLT:5%
Storage capacity	40 000 (max.) test results including scattergrams, histograms, and patient data
User interface	10.1” LCD with capacitive touchscreen Resolution: 800×1280 (portrait)
Languages	English, Italian, French, Russian, Hungarian, Spanish, Romanian, Portuguese, Vietnamese, Ukrainian, Bosnian
Connectivity	2 x USB ports, Ethernet, LIS (HL7 and ASTM)
Dimensions (HxWxD)	280 x 216 x 336 mm
Net weight	8.5 kg
Power	External power supply, 12 VDC, 5A (100-240 VAC 50-60 Hz)
Power Consumption	Maximum 60W
Reagents	Diluent, Lyse, Cleaner
