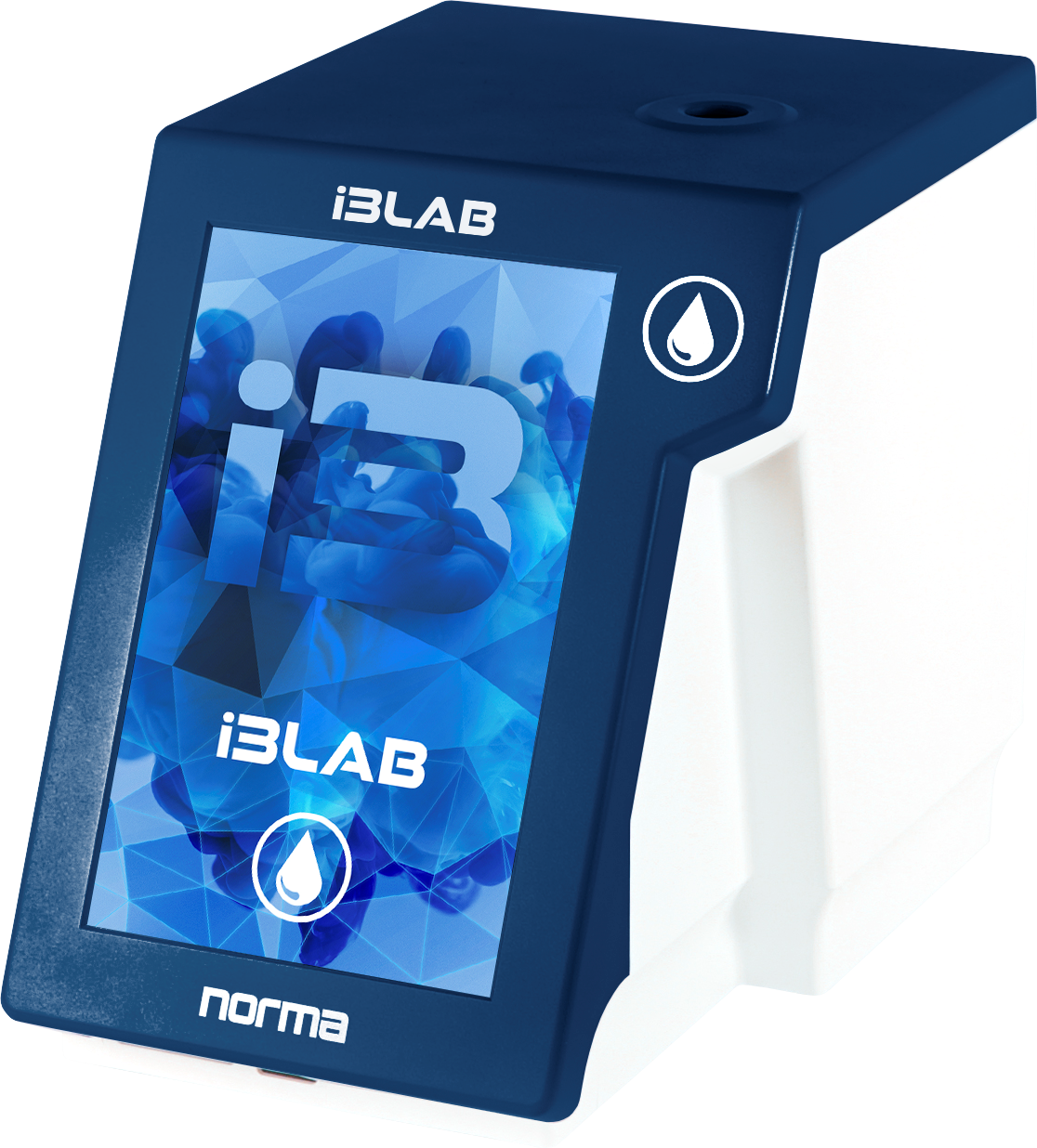

i3LAB: A 3-diff hematology analyzer with closed vial sampling designed for labs

i3LAB: A 3-diff hematology analyzer with closed vial sampling designed for labs

The i3LAB is a smart, 3-part differential hematology analyzer developed for lab use with closed vial sampling.

Overview

The i3LAB is a smart, 3-part differential hematology analyzer with closed vial sampling with an innovative and handy design. The i3LAB provides a 22-parameter complete blood cell count report that includes WBC, RBC, and PLT histograms, using the volumetric impedance method for the detection of red blood cells (RBC) and white blood cells (WBC) and photometric method for the measurement of hemoglobin (HGB) levels.


The i3LAB was primarily developed to be used in laboratory environments as it provides an 80 tests/hour throughput and is compatible with the Norma Autoloader to offer effective support in the everyday work of the laboratory personnel. It does not only have a compact size, low reagent consumption – using only two reagents – and small sampling volume processing, but it also doesn’t require any weekly maintenance action from the user.

Gallery

Highlights and Best Features

  • 3-part differential hematology analyzer that provides a 22-parameter complete blood cell count report
  • Closed sampling mode
  • Possible to measure from capillary samples
  • Volumetric impedance method for detection of red blood cells (RBC) and white blood cells (WBC) and photometric method for the measurement of hemoglobin (HGB) levels
  • 80 tests/hour throughput
  • Compact size
  • Extremely low reagent consumption – using only diluent and lyse
  • Reagent packs are available for 100 and 1000 tests
  • Smallest sample volume processing – 2* 1.4µL processed whole blood
  • 10.1” LCD touch screen – easy to use, straightforward navigation
  • Minimal user maintenance actions needed
  • Remote Access – a convenient online diagnostic tool
  • Advanced barcode and QR code reader
  • LIS connectivity

Technical Specifications

Parameters (22)WBC, LYM, MID, GRA, LYM%, MID%, GRA%,
RBC, HGB, HCT, MCV, RDWsd/cv, MCH, MCHC,
PLT, MPV, PCT, PDWsd/cv, PLC-R%, PLC-C
Measurement TechnologyVolumetric impedance method for RBC, WBC
Photometric method for HGB
HistogramsRBC, PLT, WBC 3-part
Sampling modeClosed vial mode (normal & 1-3 prediluted mode)
Sample volume Aspirated
Processed
38 uL whole blood
2* 1.4 uL whole blood
Throughput80 tests per hour
Precision
(CV, max)
WBC< 3%, RBC< 2%, MCV< 1%, HGB< 2%, PLT< 5%
Storage
capacity
60,000 (max.) test results including histograms and patient data
User interfaceLCD 10.1”, 1280×800 with capacitive touch screen, portrait
LanguagesEnglish, Italian, French, Russian, Hungarian, Spanish, Romanian, Portuguese, Vietnamese, Ukrainian, Bosnian
Connectivity2 x USB ports, Ethernet connector, LIS (HL7)
Dimensions
(HxWxD)
280 x 216 x 336 mm
Net weight8.3 kg
PowerExternal power supply, 12 VDC, 5A (100-240 VAC 50-60 Hz)
Power
Consumption
Maximum 55W
ReagentsOnly 2 reagents are needed: Norma-iDil2, Norma-iLyse2;  Reagent packs are available for 1000 tests or 100 tests
