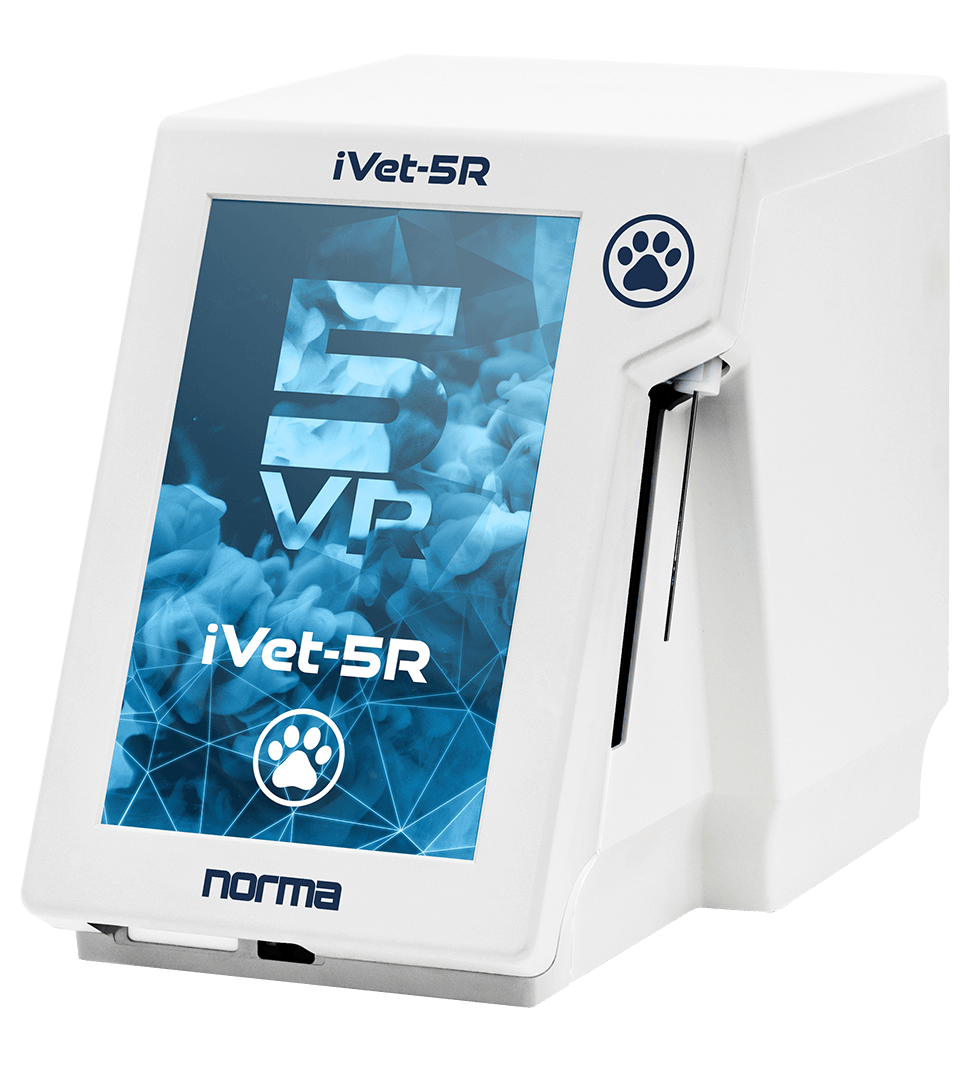

iVet-5R: reticulocytes included, precision elevated

With reticulocyte measurement and laser-based 5-part differential technology, the iVet-5R provides advanced and dependable hematology results for veterinary care.

Overview Gallery Highlights and Best Features Technical Specifications Brochures

Overview

The iVet-5R integrates reliable reticulocyte measurement into a smooth, clinic-friendly workflow, helping veterinary teams stay focused on patient care. Pure optical measurement delivers stable, reproducible 5-part differential results across species, avoiding the limitations of impedance-based systems.

With 31 parameters, species-adapted profiles, and clear reticulocyte insight, the iVet-5R supports deeper understanding in routine checkups, anemia evaluation, and complex diagnostics. A responsive interface and intuitive operation keep daily use effortless, providing comprehensive hematology through a clean, reliable, veterinary-focused experience.

Gallery

Highlights and Best Features

Complete Hematology, Clear Interface – comprehensive results without distraction.
Reliable in Routine & Critical Cases – precise data supports confident decisions, even in urgent situations.
Reticulocyte Insights – supports anemia staging, regenerative monitoring, and bone-marrow assessment.
Veterinary-Focused Workflows – species-adapted screens deliver stable, reproducible results.
Compact size – one of the smallest hematology analyzers ever manufactured for veterinary use
Low reagent consumption
Low sample volume processing
Smart Reagent Use – efficient pack sizing reduces waste and operating costs.

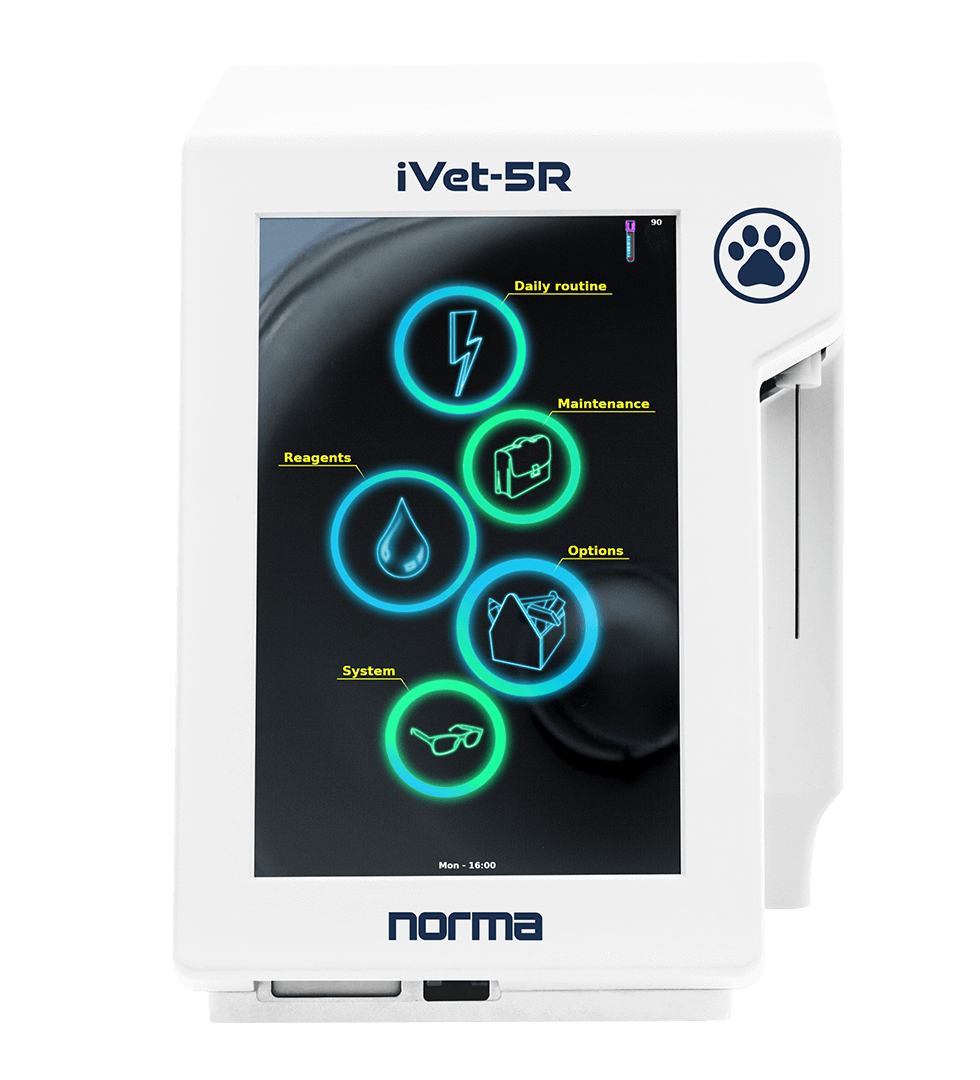

10.1” LCD touchscreen – easy-to-use, straightforward navigation
Intuitive Workflow – from sample loading to results, every step flows smoothly.
Open vial sampling
Minimal user maintenance actions needed
LIS connectivity
Hemoglobin–Volume Mapping – V/HC scatter reveals RBC size and hemoglobin patterns.

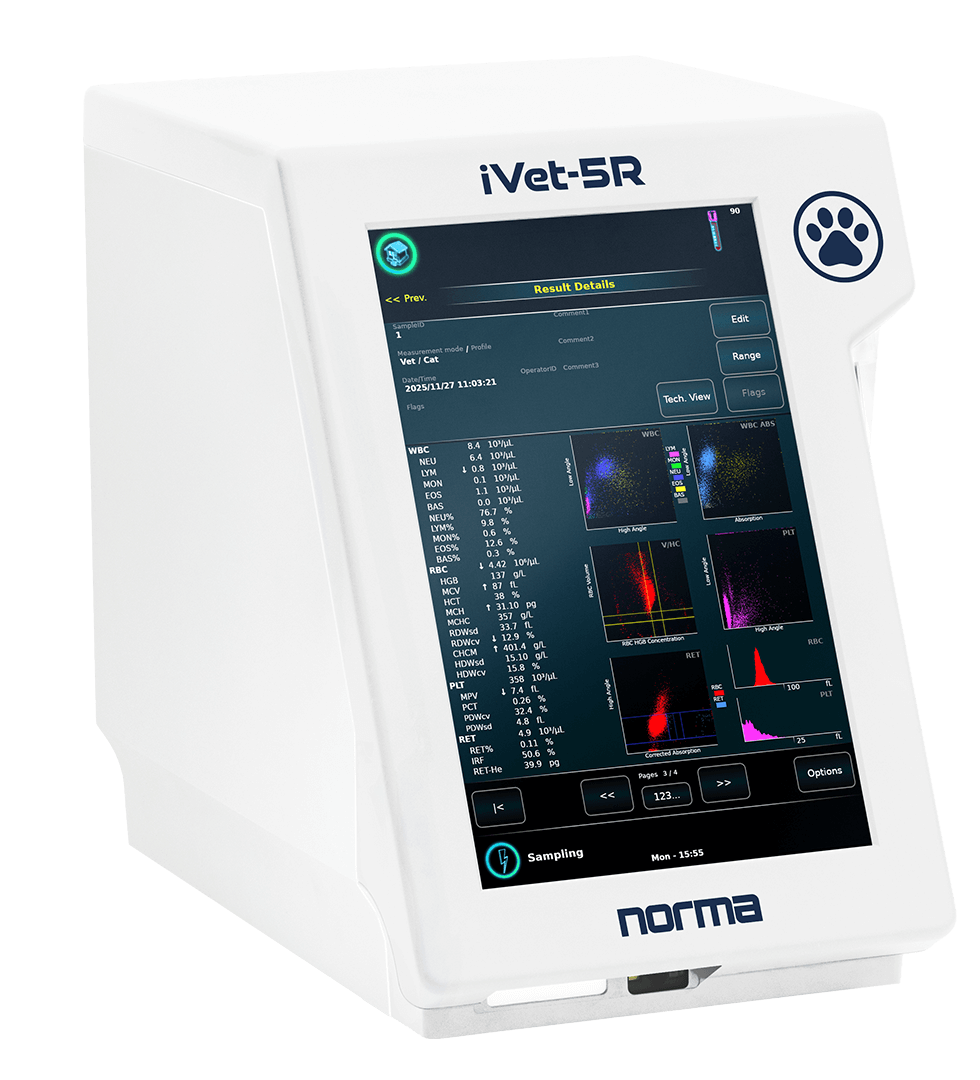

Clear RBC & RET Visualization – scattergrams highlight RBCs and reticulocytes for faster interpretation.
Accurate Reticulocytes – high-quality measurements detect subtle regenerative changes in various species.
Feline Platelet Accuracy – optical PLT measurement improves consistency where impedance fails.

Technical Specifications

Parameters	WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HGB, HCT, MCV, RDWsd/cv, MCH, MCHC, PLT, MPV, PCT, PDWsd/cv, PLC-R%, PLC-C RET, RET%, RET-He, IRF, CHCM
Measurement Technology	Laser-based scattered light detection for WBC, RBC, and PLT Photometrical method for HGB Absorption method for reticulocytes
Animal species	Dog, cat
Scattergram	WBC 5-part, Retic, RBCAbs, WBCAbs, MIE, V/HC
Histograms	RBC, PLT
Sampling mode	Open vial sampling
Sample volume Aspirated	38μL whole blood
Throughput	30 tests per hour
Precision (CV, max)	WBC<3%, RBC<2%, PLT<5%, MCV<1%, HGB<2%, RET<12,5%
Storage capacity	10,000 (max.) test results, including scattergrams, histograms, and patient data
User interface	10.1” LCD with capacitive touchscreen Resolution: 800×1280 (portrait)
Languages	English
Connectivity	2 x USB ports, Ethernet, LIS (HL7)
Dimensions (HxWxD)	280 x 216 x 336 mm
Net weight	9.4 kg
Power	External power supply, 12 VDC, 5A (100-240 VAC 50-60 Hz)
Power Consumption	Maximum 60W
Reagents	RetDil, Lyse, Cleaner, RetBlue
